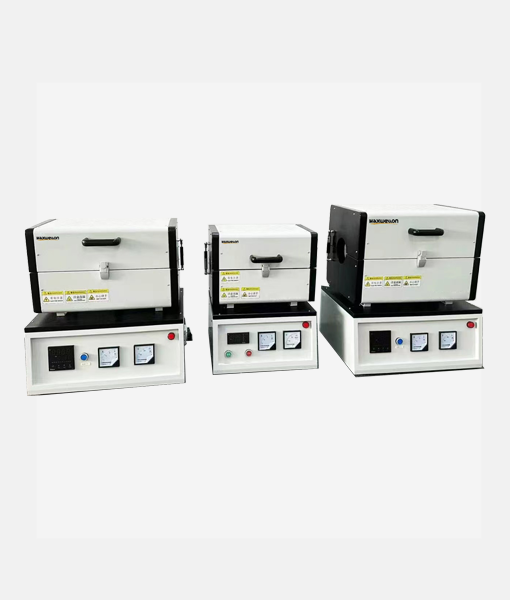

Find the right tube furnace for your application at Maxwellon! Our tube furnaces are available in multiple configurations with operating temperatures ranging up to 1200°C. Every model provides precise temperature control, uniform heat distribution, and enhanced performance quality. If you require a specialized heating solution, our team of engineers can design a custom tube furnace to your exact specifications to help reduce costs in laboratory and production environments.
Key Features
◼︎ Integrated Design for Easy Operation
◼︎ Furnace Chamber Constructed with High-Purity Alumina Fiber Material, Minimizing Heat Loss
◼︎ High Temperature Control Precision, Display Accuracy of 1°C
◼︎ Fully Automatic Programmable Controller with 30 Segment Program Temperature Control
◼︎ Optional 485 Communication/PC Software, Enabling Data Storage
◼︎ Equipped with Portable and Detachable Quartz Tube Adapter
◼︎ Supported by a Professional Technical Team, Capable of Designing Various Gas Atmosphere Ratios
| Model | MX-VTF Series |
| Furnace Chamber Material | Alumina |
| Reaction Tube Diameter | 20mm/ 40mm/ 60mm/ 80mm/ 100mm/ 120mm/ 140mm |
| Temperature Uniformity Zone | 100mm/ 200mm |
| Maximum Temperature | 1200℃ |
| Interface | Customizable specifications such as flanges, KF flanges, and other forms of interfaces are available. |
| Note | Customization available according to customer's experimental requirements |
For more detailed information, please download the PDF Datasheet above.
Expansion Options
◼︎ Supports 485 communication, providing PC software for operation, real-time data display, and tracking, as well as storage of historical records.
◼︎ Capable of various gas atmosphere ratios, including nitrogen, argon, and mixed gases.
◼︎ Specialized design for gas atmosphere simulation, such as water vapor, humidity, and organic VOC gas, with
effective prevention of steam condensation through professionally designed gas piping interfaces.
◼︎ Ability to create a vacuum environment for tube furnace reactors.
For more detailed information, please download the PDF Datasheet above.
